Application >

Energy storage inverter

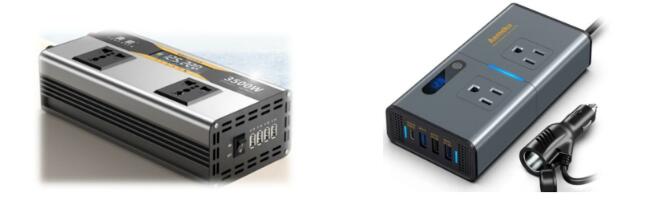

Inverter (onboard inverter 500-1000W)


In the traditional vehicle inverter market, the maximum power does not exceed 1000W, and most of them use traditional square wave algorithms combined with low-frequency solutions. For square wave and low-frequency applications, Yongyuan Microelectronics has launched a supplement to the traditional Trench 1st generation process, as well as matching with later stage high-voltage flat products.

Primary boost

APM model

parameter

Opening voltage

encapsulation

Mass production

Replacement model

AP150N04HP

150A 40V 2.8m Ω

2.0-4.0V

TO220-3L

Mass production

IRFP1404

AP180N04P

180A 40V 1.8m Ω

2.0-4.0V

TO220-3L

Mass production

IRFP1404

AP120N06P

120A 65V 4.5m Ω

2.0-4.0V

TO220-3L

Mass production

IRFP3206

AP85N08BP

85A 80V 6.5m Ω

2.0-4.0V

TO220-3L

Mass production

Strong EAS capabilities


Rear stage inverter

APM model

parameter

Opening voltage

encapsulation

Mass production

workmanship

AP40N20P

40A 200V 52m Ω

2.0-4.0V

TO220-3L

Mass production

Planar process

AP50N20P

50A 200V 48m Ω

2.0-4.0V

TO220-3L

Mass production

Planar process

AP70N20MP

70A 200V 30m Ω

2.0-4.0V

TO247-3L

Mass production

Planar process

AP50N25MP

50A 250V 70m Ω

2.0-4.0V

TO247-3L

Mass production

Planar process

AP90N25MP

90A 280V 30m Ω

2.0-4.0V

TO247-3L

Mass production

Planar process

AP70N30MP

70A 300V 55m Ω

2.0-4.0V

TO247-3L

Mass production

Planar process

AP100N30MP

100A 300V 44m Ω

2.0-4.0V

TO247-3L

Mass production

Planar process

AP12N40P

12A 400V 430m Ω

2.0-4.0V

TO220-3L

Mass production

Planar process

AP30N40F

30A 400V 100m Ω

2.0-4.0V

TO-220F

2023-10

Planar process

AP40N40MP

40A 400V 90m Ω

2.0-4.0V

TO247-3L

2023-10

Planar process

AP20N50F

20A 500V 260m Ω

2.0-4.0V

TO220F-3L

Mass production

Planar process

AP24N50F

24A 500V 215m Ω

2.0-4.0V

TO220F-3L

Mass production

Planar process

AP28N50F

28A 500V 195m Ω

2.0-4.0V

TO220F-3L

Mass production

Planar process

AP24N50MP

24A 500V 215m Ω

2.0-4.0V

TO247-3L

Mass production

Planar process

AP28N50MP

28A 500V 170m Ω

2.0-4.0V

TO247-3L

Mass production

Planar process

AP34N50MP

34A 500V 150m Ω

2.0-4.0V

TO247-3L

Mass production

Planar process


Inverter (portable inverter 1000-2000W)


APM model

parameter

Opening voltage

encapsulation

Mass production

workmanship

AP160N10P

160A 100V 3.8m Ω

2.0-4.0V

TO220-3L

Mass production

SGTI

AP220N10MP

220A 100V 2.8m Ω

2.0-4.0V

TO247-3L

Mass production

SGTI

AP280N10MP

280A 100V 2.0m Ω

2.0-4.0V

TO247-3L

Mass production

SGTI

AP340N10MP

340A 100V 1.7m Ω

2.0-4.0V

TO247-3L

Mass production

SGTI

AP160N10P

160A 100V 3.8m Ω

2.0-4.0V

TO220-3L

Mass production

SGTI

AP220N10MP

220A 100V 2.8m Ω

2.0-4.0V

TO247-3L

Mass production

SGTI

AP280N10MP

280A 100V 2.0m Ω

2.0-4.0V

TO247-3L

Mass production

SGTI

AP340N10MP

340A 100V 1.7m Ω

2.0-4.0V

TO247-3L

Mass production

SGTI

The subsequent reference products are as follows

APM model

parameter

Opening voltage

encapsulation

Mass production

workmanship

APJ50N65F

IDM: 50A 650V 160m Ω

2.0-4.0V

TO220F-3L

Mass production

2nd generation deep trench

APJ75N65F

IDM: 75A 650V 100m Ω

2.0-4.0V

TO220F-3L

Mass production

2nd generation deep trench

APJ100N65MP

IDM: 100A 650V 78m Ω

2.0-4.0V

TO247-3L

Mass production

2.5-generation deep groove

APJ150N65MP

IDM: 150A 650V 58m Ω

2.0-4.0V

TO247-3L

Mass production

2.5-generation deep groove



Inverter (photovoltaic/home storage inverter 2000W-5000W)

Generally speaking, the frequency of household energy storage inverters is mostly in the classic 35K range, and the corresponding capacitance requirements for MOS are not very high, but the internal resistance requirements will be higher and more stringent.

The secondary reference products are as follows

APM model

parameter

Opening voltage

encapsulation

Mass production

workmanship

AP120N15P

120A 150V 9.0m Ω

2.0-4.0V

TO220-3L

Mass production

SGTI

AP190N15P

190A 150V 6.5m Ω

2.0-4.0V

TO220-3L

Mass production

SGTI

AP240N15P

240A 150V 5.2m Ω

2.0-4.0V

TO220-3L

Mass production

SGTI

AP300N15MP

300A 150V 3.5m Ω

2.0-4.0V

TO247-3L

Mass production

SGTI

AP100N20MP

100A 200V 17m Ω

2.0-4.0V

TO247-3L

Mass production

groove

AP130N20MP

130A 200V 17m Ω

2.0-4.0V

TO247-3L

Mass production

plane

AP140N20MP

140A 200V 9.0m Ω

2.0-4.0V

TO247-3L

Mass production

SGTI

AP110N25MP

110A 250V 17m Ω

2.0-4.0V

TO247-3L

Mass production

SGTI

AP90N25MP

90A 280V 30m Ω

2.0-4.0V

TO247-3L

Mass production

plane

AP100N30MP

100A 300V 44m Ω

2.0-4.0V

TO247-3L

Mass production

plane


Yongyuan Microelectronics has launched a large number of low resistance, TO-247 packaged products for this market. The resistivity ranges from a few mR to several tens of mR, and the voltage platform ranges from 100V-300V series
