Application >

Air conditioning control

Front mounted automotive air conditioning components (passenger cars)

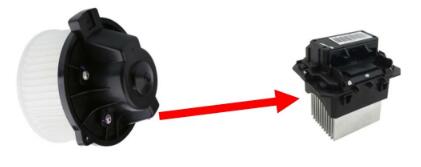

Blower
The application scenario of the automotive blower module is a linear switch circuit, which requires very high thermal resistance of MOS chips. Yongyuan Microelectronics has launched the product AP100N08CMP for the brushless linear drive scheme, which meets the 5A 5B reliability testing of the blower industry. At the same time, for the new generation of brushless blower application modules, Yongyuan Microelectronics, in conjunction with National Technology, has integrated and launched 40V 0,75mR application products, as well as AP10G04DF with low power wattage, targeting the low-cost market.

model

workmanship

parameter

EAS (mJ)

encapsulation

Mass production

application

AP100N08CMP

Planar

100A 80V 6.8m Ω

one thousand and fifty-four

TO247-3L

Mass production

Brushed Linearity

AP200N04NF

SGT 5

200A 40V 0.75m Ω

eight hundred and forty-five

PDFN5 * 6-8L

Mass production

Brushless motor

AP10G04DF

Trench

40V N P

two thousand

PDFN3 * 3-8L

Mass production

Brushless motor


With the rise of new energy vehicles, the circuit of the air conditioning compressor has been changed from the original brushless motor to a brand new brushless motor, targeting the high-power compressor motor controller in the current state. Yongyuan Microelectronics has launched the following products.

Air conditioning compressor
The traditional structure of the air conditioning compressor circuit uses Lpak5 * 6-8L/DFN5 * 6-8L packaging, which results in the need to add a large amount of copper coating on the back during the production process. Some also use 60V multi tube parallel circuits for production design. Causing overcrowding in PCBA, Yongyuan Microelectronics provides comprehensive solutions for the industry. Using TOLLA optimization to solve the problem of Lpak5 * 6 highly dependent on PCBA heat dissipation, improve the current capacity of a single transistor, and solve the defect problem of multi transistor parallel circuits.

model

workmanship

parameter

encapsulation

Mass production

application

AP300N05TLG5

SGT 5

300A 45V 1m Ω

Toll-8L

Mass production

24V controller

AP300N06TLG2

SGT 2

300A 60V 1.2m Ω

Toll-8L

Mass production

36V controller

AP200N10TLG2

SGT 2

200A 100V 3.6m Ω

Toll-8L

Mass production

36V controller

AP280N10TLG2

SGT 2

200A 100V 1.8m Ω

Toll-8L

Mass production

36V controller
