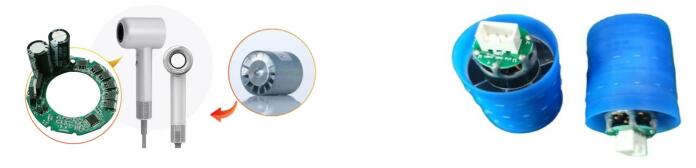

Motor control (high-speed motor: vacuum cleaner and high-speed blower)

For high-speed motors, Yongyuan Micro has launched ultra-low capacitance and integrated fast recovery FRDmos to match the market materials

groove	APM model	parameter		Ciss (PF)	encapsulation	application area
N	AP70N03NF	70A 30V 3.5m Ω		two thousand two hundred and ninety-five	DFN5 * 6	12V vacuum cleaner
N	AP100N04NF	100A 40V 2.5m Ω		two thousand six hundred and forty-eight	DFN5 * 6	24V vacuum cleaner

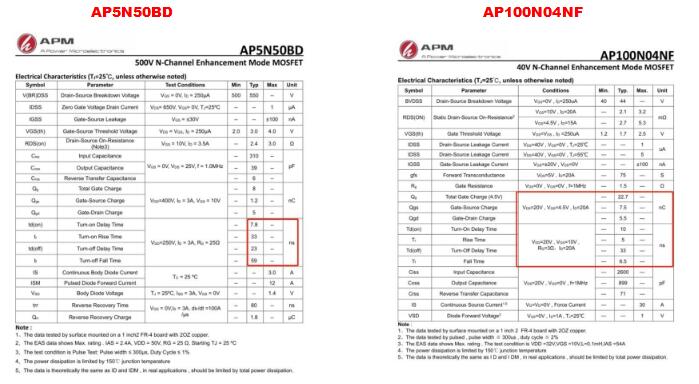

N	AP5N50BD	5.0A 500V 2.4 Ω		three hundred and ten	TO-252	220V hair dryer
N	APJ7N65D	7.0A 650V 1.0 Ω		two hundred and forty-six	TO-252	220V hair dryer
N	AP6N40D	6.0A 400V 0.8 Ω		seven hundred	TO-252	110V hair dryer

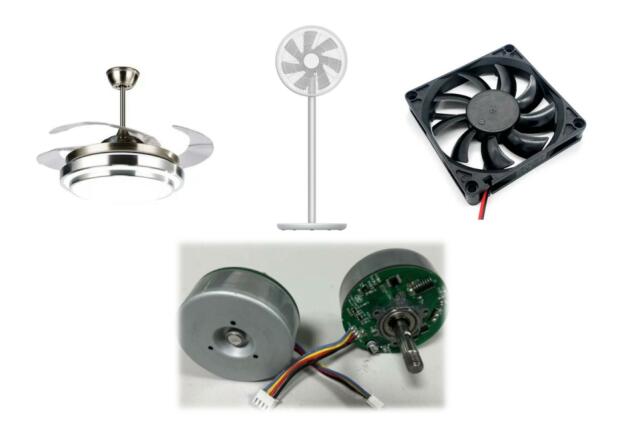

Motor control (brushless fan)

groove	APM model	parameter	encapsulation	application area
N P	AP6G03LI	6.8A 30V 18m Ω/-5.8A -30V 42m Ω	SOT23-6L	Chassis heat sink fan
N P	AP4606A	6.8A 30V 18m Ω/-5.8A -30V 45m Ω	SOP-8L	12V-18V Brushless Floor Fan/Ceiling Fan
N P	AP6G03S	10A 30V 20m Ω/-7.8A 30V 39m Ω	SOP-8L	12V-18V Brushless Floor Fan/Ceiling Fan
N P	AP10G03S	12A 30V 8.5m Ω/-9.8A -20V 16m Ω	SOP-8L	12-18V brushless floor/ceiling fan
N P	AP6G04LI	6.3A 40V 30m Ω/-6.1A -40V 60m Ω	SOT23-6L	24V brushless floor fan/ceiling fan
N P	AP6G04S	6.3A 40V 30m Ω/-6.1A -40V 62m Ω	SOP-8L	24V brushless floor fan/ceiling fan
N P	AP10G04S	9.8A 40V 17.5m Ω/-7.5A 40V 38m Ω	SOP-8L	24V brushless floor fan/ceiling fan

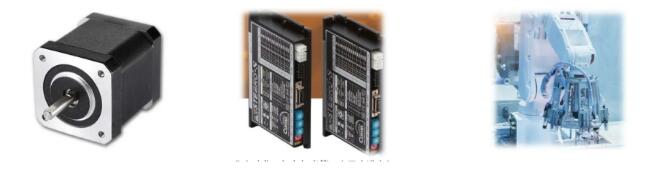

Motor control (stepper motor/industrial automation)

The traditional stepper motor market is divided into several application scenarios: industrial automation, stage lighting, etc. Due to the low efficiency of stepper motors, the switching loss of MOS is higher than that of traditional FOCs, so the chip size of MOS has high requirements. Some high-power stepper motor controllers need to use fans for blowing and cooling, or increase the heat sink for cooling. Faced with this scenario, Yongyuan Microelectronics launched the SGT first generation 150V platform to achieve fanless cooling.

APM model	parameter	Opening voltage	encapsulation	Mass production	Replace part number	workmanship
AP40N10P	40A 100V 18m Ω	2.0-4.0V	TO220-3L	Mass production	IRF540/Huawei 60N10	SGT
AP70N10P	70A 100V 16m Ω	2.0-4.0V	TO220-3L	Mass production	IRF540/Huawei 60N10	groove
AP70N10HD	70A 100V 16m Ω	2.0-4.0V	TO252-3L	Mass production		groove
AP30N15HD	30A 150V 65m Ω	2.0-4.0V	TO252-3L	Mass production		SGT
AP30N15P	30A 150V 65m Ω	2.0-4.0V	TO252-3L	Mass production		SGT
AP30N15NF	30A 150V 65m Ω	2.0-4.0V	PDFN5 * 6-8L	Mass production		SGT
AP90N15P	90A 150V 17m Ω	2.0-4.0V	TO220-3L	Mass production	No fan application	SGT
AP90N15D	90A 150V 17m Ω	2.0-4.0V	TO252-3L	Mass production	No fan application	SGT
AP90N15NF	90A 150V 17m Ω	2.0-4.0V	PDFN5 * 6-8L	Mass production	No fan application	SGT
AP640P	18A 200V 150m Ω	2.0-4.0V	TO220-3L	Mass production	IRF640	Planar process
AP30N20P	30A 200V 100m Ω	2.0-4.0V	TO220-3L	Mass production		Planar process
AP40N20P	40A 200V 52m Ω	2.0-4.0V	TO220-3L	Mass production		Planar process
